SpecPoxy HSHV

High-performance, moisture-insensitive, structural gel epoxy for anchoring applications in concrete, block, brick, or stone.

SpecPoxy HSHV is a two-component, moisture-insensitive, high-modulus, structural epoxy bonding gel. It is a 100% solids, solvent-free, low-odor, high-strength, non-sag adhesive specifically formulated for anchoring applications in concrete.

  • High-strength gel adhesive for vertical and overhead applications

  • Moisture-insensitive; suitable for dry or water-saturated conditions

  • VOC Content = 0 g/L (compliant with low-emission standards)

  • Ideal for anchoring bolts, dowels, and reinforcing steel

  • Works in concrete, block, brick, and stone

  • Solvent-free and low-odor formulation

  • Meets major DOT and ASTM specifications

Tech Sheet
Safety Sheet

Application

Surface Preparation: All bonding surfaces must be clean and structurally sound. Remove oil, grease, laitance, dirt, and contaminants by mechanical means such as sandblasting or hydroblasting. Clean drilled holes with a nylon brush and oil-free compressed air. Ensure bolts, rebar, or threaded rod are clean.

Mixing: Precondition cartridges to 75°F. For cartridges, material is mixed via a static mixing nozzle. Dispense until a uniform grey color (no streaks) is achieved.

Anchoring:

  • Hole depth = ~9x bolt diameter

  • Hole diameter = 1/8” larger than bolt diameter

  • Dispense from the bottom of the hole, filling approx. 5/8 of its depth

  • Insert anchor slowly, rotating for even distribution

  • Do not disturb until cured

Packaging

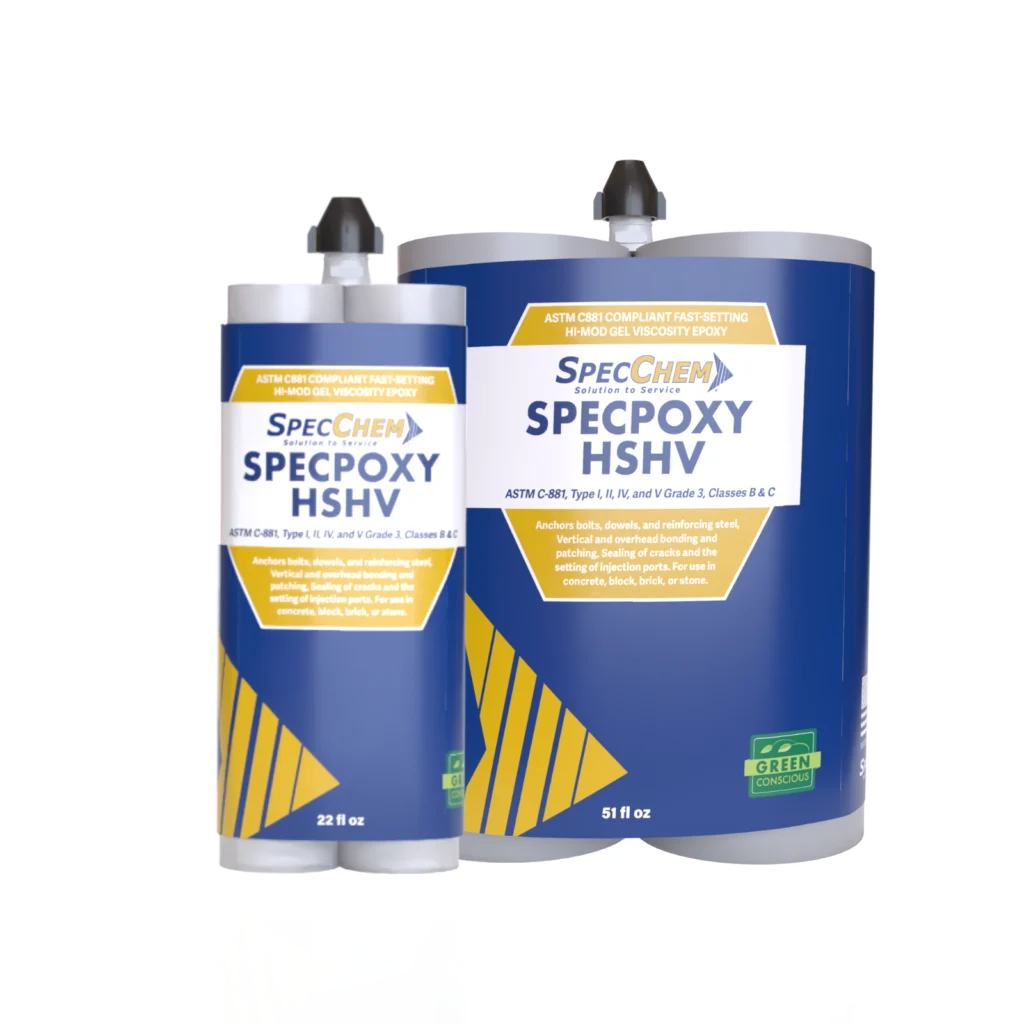

  • 22 oz. dual cartridge
  • 51 oz. dual cartridge
  • 10 gallon kits

Shelf Life

Two years when stored in original, unopened containers in clean, dry conditions. Avoid contamination with moisture or debris.

Coverage

Coverage depends on hole size and embedment depth. See pullout test data below for guidance on typical embedments.

Uses

  • Anchoring of bolts, dowels, and reinforcing steel

  • Structural bonding and patching in vertical or overhead positions

  • Suitable for concrete, block, brick, or stone installations

Test Data

TYPICAL CURED PROPERTIES @ 70°F

  • Initial Cure: 4 hours

  • Final Cure: 3 days

  • Compressive Strength (ASTM D695): 14,500 psi

  • Compressive Modulus: 505,000 psi

  • Bond Strength (ASTM C882):

    • @ 2 days: 2,910 psi

    • @ 14 days: 3,550 psi

  • Tensile Strength (ASTM D638): 7,590 psi

  • Elongation (ASTM D638): 1.0%

  • Water Absorption (ASTM D570): < 0.2%

  • Linear Shrinkage (ASTM C531): 0.003%

  • Heat Deflection (ASTM D648): 155°F

  • Mix Ratio: 1:1

  • Mixed Color: Gray

  • Viscosity: Gel/Paste

  • Gel Time (ASTM D2471): 18 minutes

Florida DOT Section 937 Pullout Test – Grade B7 5/8” Rod

Condition Avg. Bond Strength (psi) Mode of Failure
Confined Tension 3,101 Concrete
Confined Damp Hole 2,962 Concrete
Elevated Temp 3,121 Concrete
Horizontal Orientation 2,642 Concrete
Short Term (24 hrs) 2,770 Concrete
Unconfined (16x102mm) 2,404 Concrete
Unconfined (16x152mm) 2,444 Concrete
Unconfined, Larger Rod 2,642 Concrete
Unconfined after Creep 2,767 Concrete

Standards

  • Meets ASTM C881 & AASHTO M 235, Type I, II, IV, and V, Grade 3, Classes B & C

  • Complies with Florida DOT Section 937 Type HSHV

Cleaning

Uncured material can be cleaned with SpecChem Orange Peel, Berry Clean, or approved solvents. Cured material must be removed mechanically.
