SpecPoxy Grout LD

SpecPoxy Grout LD is a specially formulated, 100% solids, three-component epoxy grout designed for precision grouting in demanding environments. Its low-exotherm epoxy resin and engineered aggregate blend deliver excellent flow, deep-pour capabilities, and high compressive strength with minimal dust. SpecPoxy Grout LD is ideal for machinery bases, structural columns, anchor bolts, and other installations requiring superior load transfer and long-term durability.

  • Special aggregate allows high flow capability for limited access grout placement without segregation
  • Excellent volume stability for maximum bond and load transfer in applications subjected to dynamic loading.
  • Low dust generation, ensuring safe and comfortable work conditions
  • Fast-cure and high early strength for minimal down time
  • High compressive, bond, and tensile strength for maximum durability in vibration applications
  • Pre-measured proportions for easy installation
  • High modulus of elasticity and impact resistance
  • Superior abrasion/chemical resistance
  • Low exotherm epoxy resin for deep pours up to 18”
Tech Sheet
Safety Sheet
Sell Sheet

Application

  • Machinery baseplates and equipment foundations

  • Structural column and precast element grouting

  • Anchor bolt grouting

  • Heavy dynamic load areas such as rail beds and vibration-intensive environments

Packaging

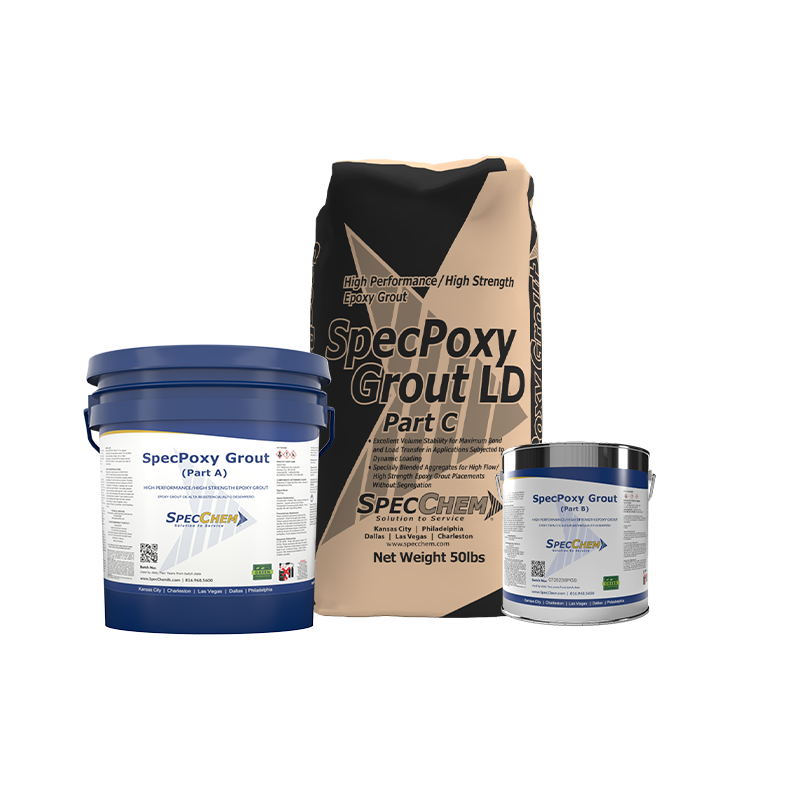

  • 0.5 cu. ft. Unit: Part A (0.75 gal), Part B (0.25 gal), Part C (1 × 50 lb bag)

  • 2.0 cu. ft. Unit: Part A (3 gal), Part B (1 gal), Part C (4 × 50 lb bags)

Shelf Life

  • 0.5 cu. ft. Unit: Part A (0.75 gal), Part B (0.25 gal), Part C (1 × 50 lb bag)

  • 2.0 cu. ft. Unit: Part A (3 gal), Part B (1 gal), Part C (4 × 50 lb bags)

Coverage

  • Maximum yield is achieved by mixing in all of Part C aggregate.

  • For high flow applications, Part C aggregate can be reduced up to 25% by weight.

  • Packaged units:

    • 0.5 cu. ft. unit (Part A: 0.75 gal, Part B: 0.25 gal, Part C: 1 × 50 lb bag)

    • 2.0 cu. ft. unit (Part A: 3 gal, Part B: 1 gal, Part C: 4 × 50 lb bags)

Uses

  • Base plates, machinery foundations, anchor bolts.

  • Structural columns and precast elements.

  • Heavy dynamic load areas (machinery, rail beds, vibration-intensive environments).

  • Deep pour grouting up to 18”.

Test Data

  • Compressive Strength (ASTM C-579): 10,100 psi (1 day); 13,350 psi (7 days); 14,650 psi (14 days)

  • Bond Strength (ASTM C-882, 14 days): 3,125 psi

  • Flexural Strength (ASTM C-580): 4,150 psi

  • Tensile Strength (ASTM C-307): 2,050 psi

  • Compressive Modulus (ASTM C-580): 2,000,000 psi

  • Hardness (Shore D): 95

  • Coefficient of Thermal Expansion (ASTM C-531): 18 x 10⁻⁶ in/in/°F

Standards

  • USDA accepted for use in Food Processing applications

Cleaning

  • Uncured material: Remove with SpecChem Solvent 100, Citrus Cleaner, or other approved solvent.

  • Cured material: Requires mechanical removal.

  • Always dispose in accordance with local, state, and federal regulations
